1. AWS Migration Hub

AWS Migration Hub provides a single location to track the progress of application migrations across multiple AWS tools and partner solutions.

Core Concept Migration Hub = single pane of glass for migration. It doesn’t perform the migration itself — it tracks and aggregates progress from MGN, DMS, and partner tools. You see all your applications, their migration status, and progress in one dashboard.

Key Features

  1. Central dashboard: track migration status across all tools (MGN, DMS, etc.)
  2. Application grouping: Organize servers and databases into applications
  3. Migration status: Not Started, In Progress, Completed per application
  4. Integrates with: MGN, DMS, CloudEndure, partner tools (Atadata, RiverMeadow, etc.)
  5. Strategy Recommendations: ML-based suggestions for migration strategy per application
  6. Free (no additional charge for Migration Hub itself)

2. AWS Application Discovery Service

Application Discovery Service helps you plan your migration by collecting information about your on-premises data center.

Core Concept Before migrating, you need to know WHAT you have. Application Discovery Service automatically discovers servers, their configurations, dependencies, and performance data in your on-premises environment. This data feeds into Migration Hub for planning.

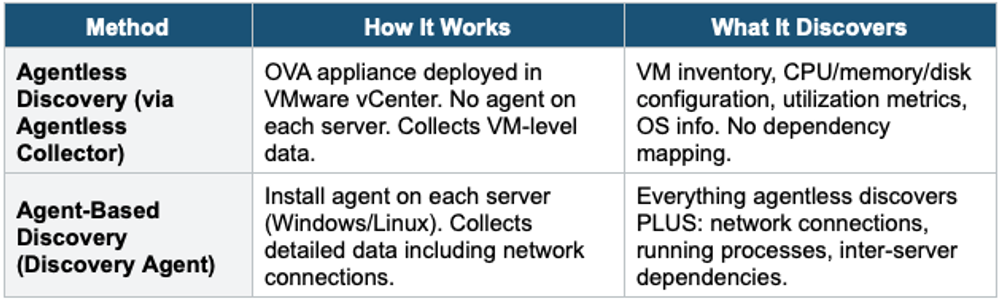

Discovery Methods

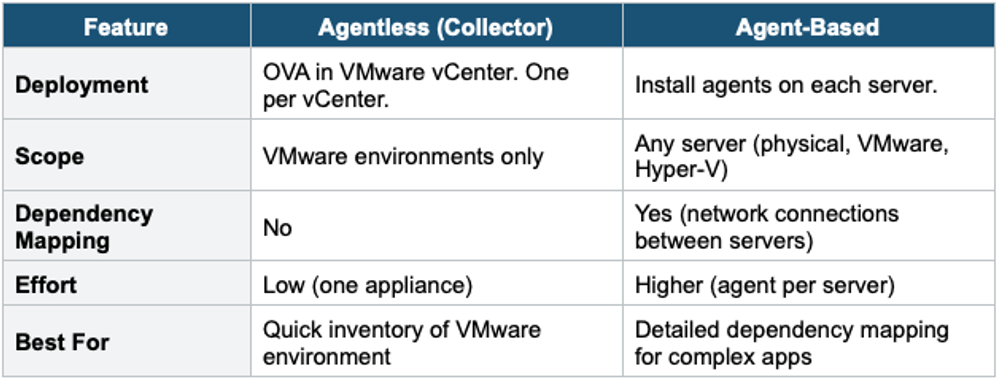

Agentless vs Agent-Based

3. Migration Hub Orchestrator

  1. Predefined migration workflow templates for common patterns
  2. Templates for: rehost with MGN, SAP migration, SQL Server migration
  3. Step-by-step orchestration: checks prerequisites, runs migration steps in order
  4. Customizable: add/modify steps for your requirements
  5. Use for: structured, repeatable migration workflows at scale

4. Migration Hub Refactor Spaces

  1. Helps incrementally refactor applications from monolith to microservices
  2. Creates an API Gateway + NLB routing layer in front of your application
  3. Route traffic between monolith (legacy) and new microservices
  4. Gradually shift endpoints from monolith to microservices (Strangler Fig pattern)
  5. Use for: refactoring a monolith to microservices while keeping the app running
Strangler Fig Pattern with Refactor Spaces:

Before: Users → Monolith (all features)

During: Users → API Gateway
            /orders   →  New Microservice (Lambda + DynamoDB)
            /products →  New Microservice (ECS + Aurora)
            /*        →  Legacy Monolith (everything else)
After:  Users → API Gateway → All Microservices (monolith retired)

5. When to use

Use these when you need to plan, track, and execute migrations from on-premises to AWS.

Common scenarios:

  1. Discover what you have — Inventory on-premises servers, apps, and dependencies before migrating.
  2. Plan migration strategy — Understand which apps depend on each other.
  3. Track migration progress — Single dashboard to monitor all migration activities across multiple AWS tools.
  4. Large-scale migrations — Coordinate dozens or hundreds of server migrations.


Exam Tip Migration Hub: "Track migration progress" = Migration Hub (dashboard). "Discover on-premises servers" = Application Discovery Service. "Dependency mapping" = Agent-Based Discovery. "VMware inventory" = Agentless Collector. "Refactor monolith to microservices" = Refactor Spaces (Strangler Fig). Migration Hub is free. Discovery Service data feeds into Migration Hub.
